Description

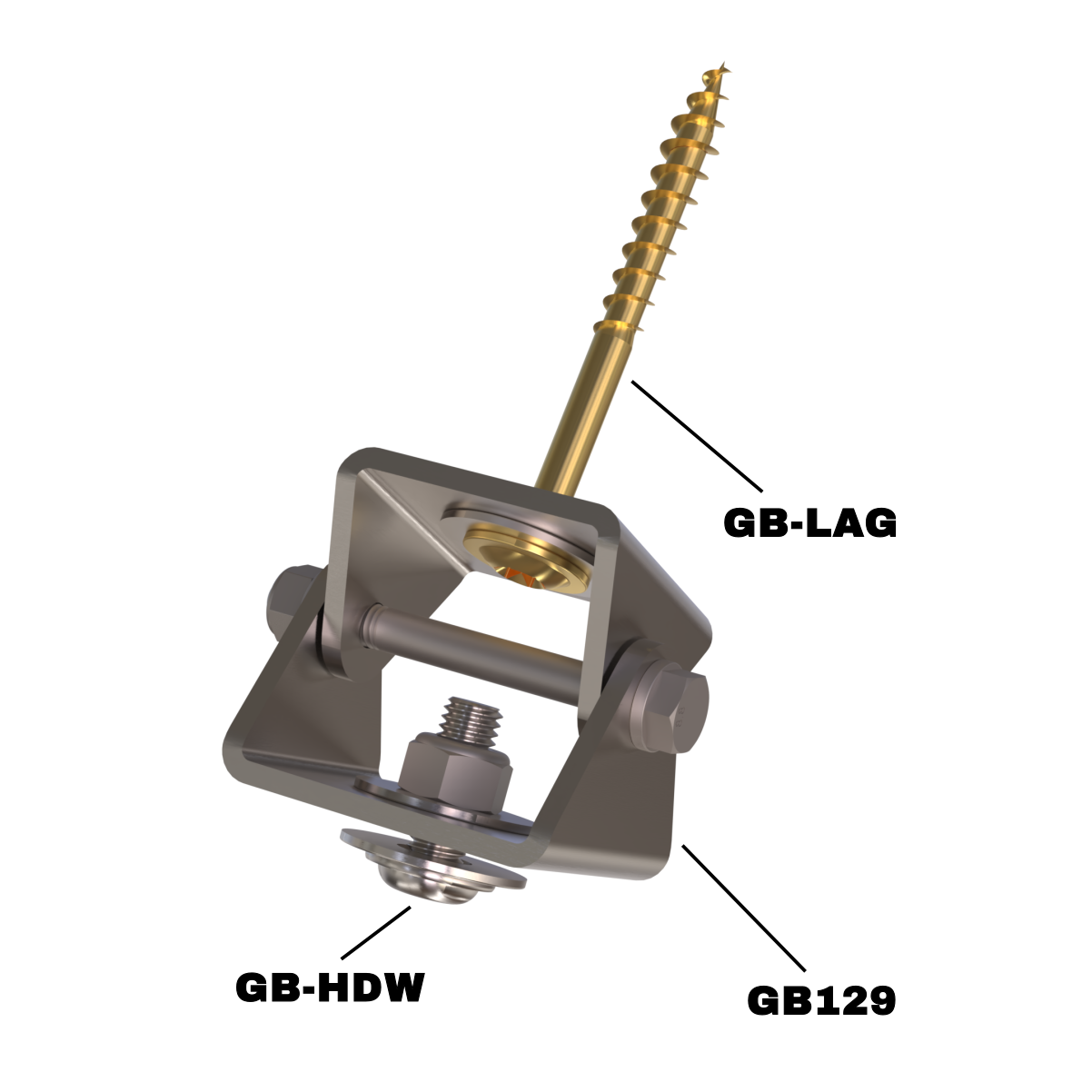

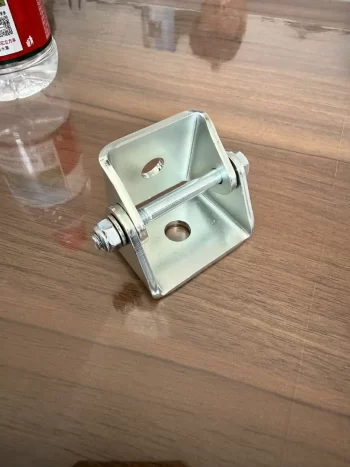

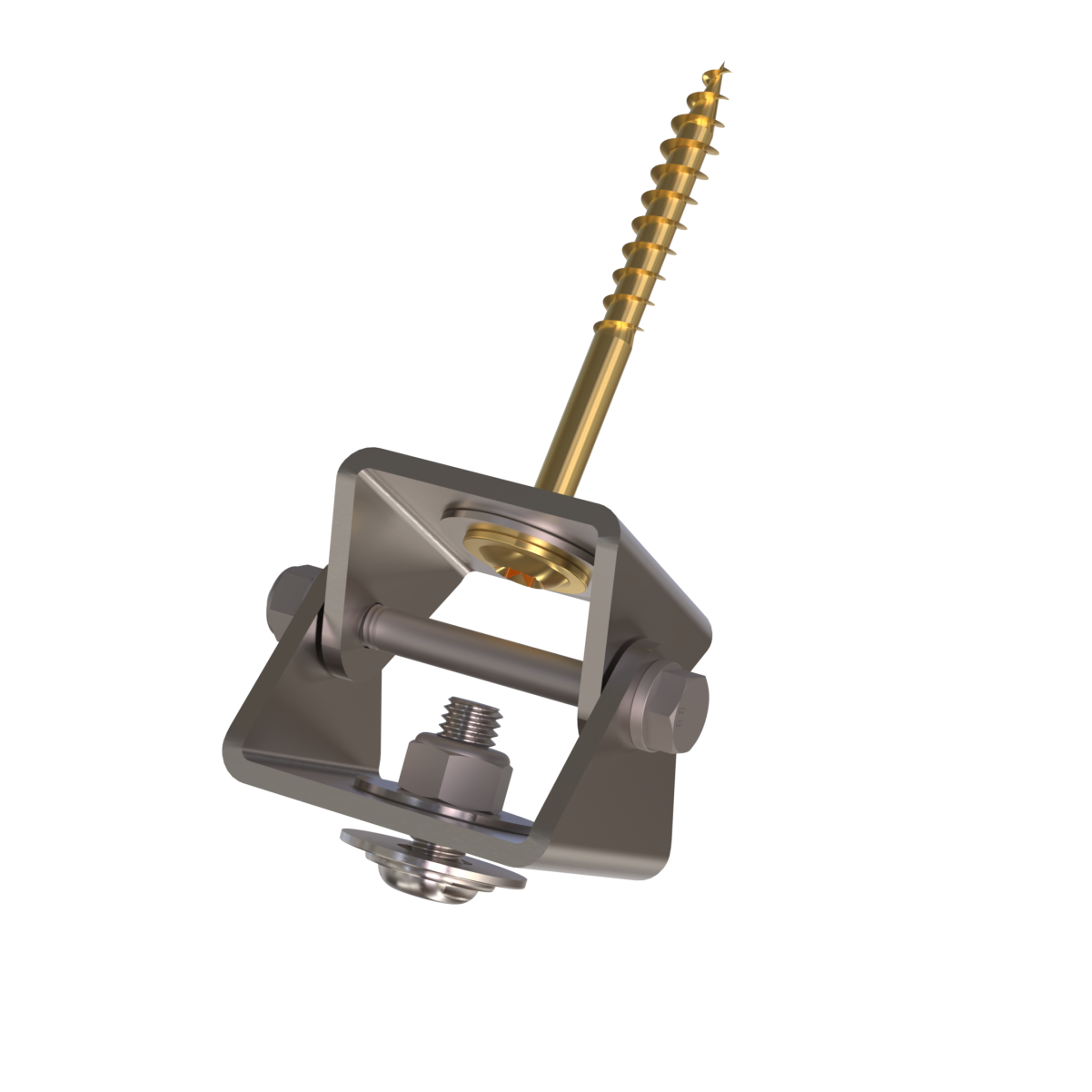

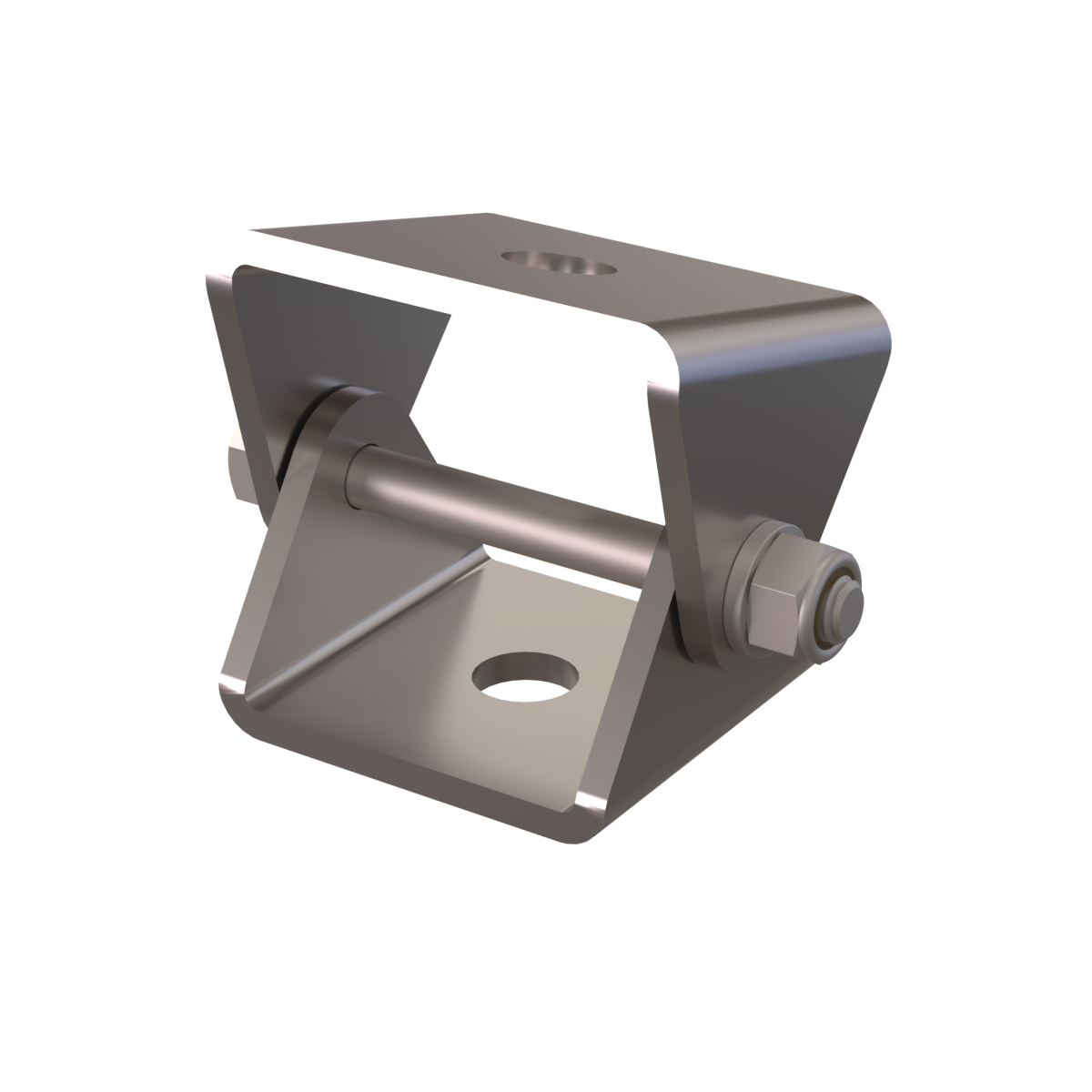

Angled Ceiling Joist Strut Channel Hanger – 100 lb Capacity
Securely mount strut channel to sloped or angled ceiling joists with this heavy-duty steel hanger. Designed for strength, adjustability, and easy installation, this bracket provides a reliable mounting solution for storage systems, overhead racks, utility supports, and other suspended applications.

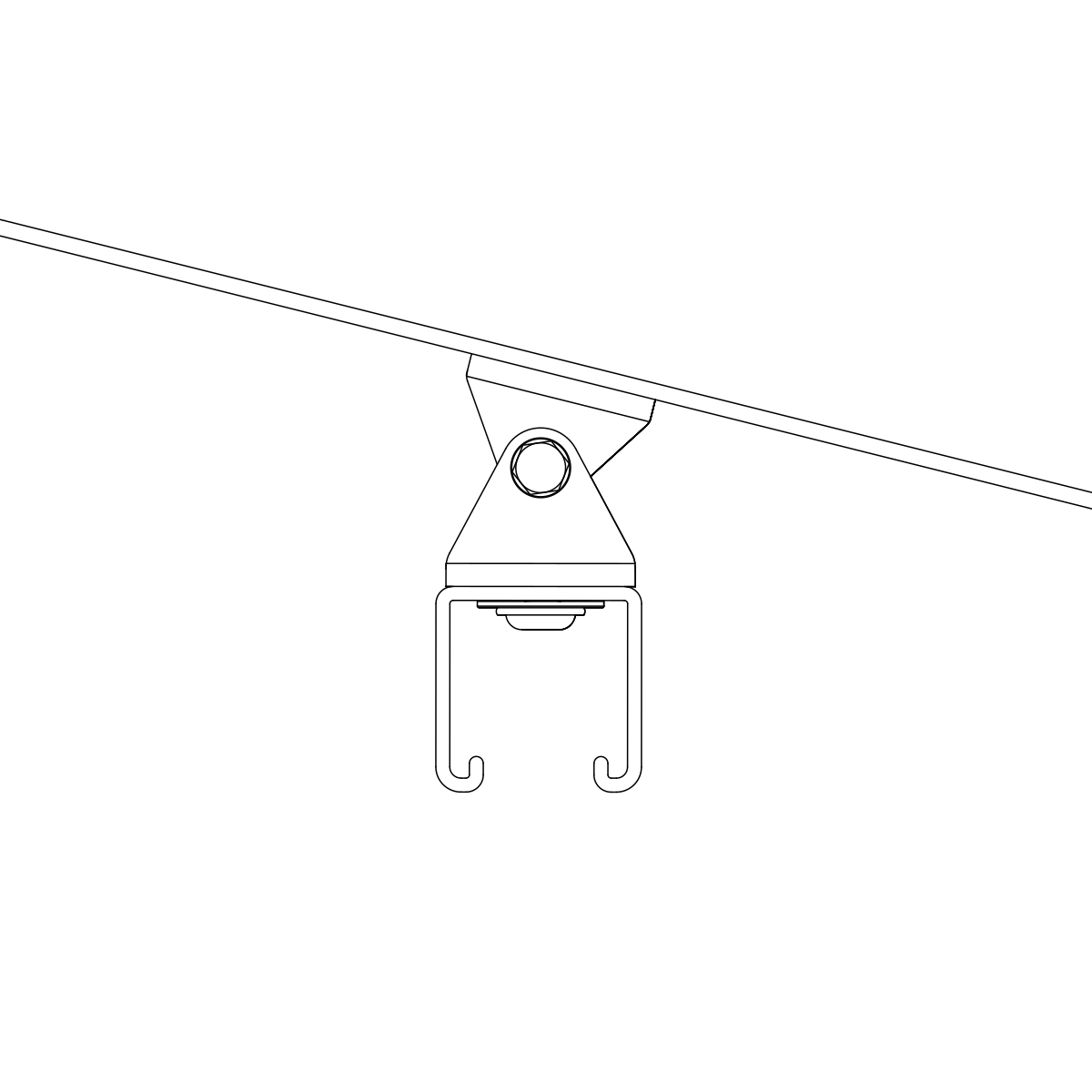

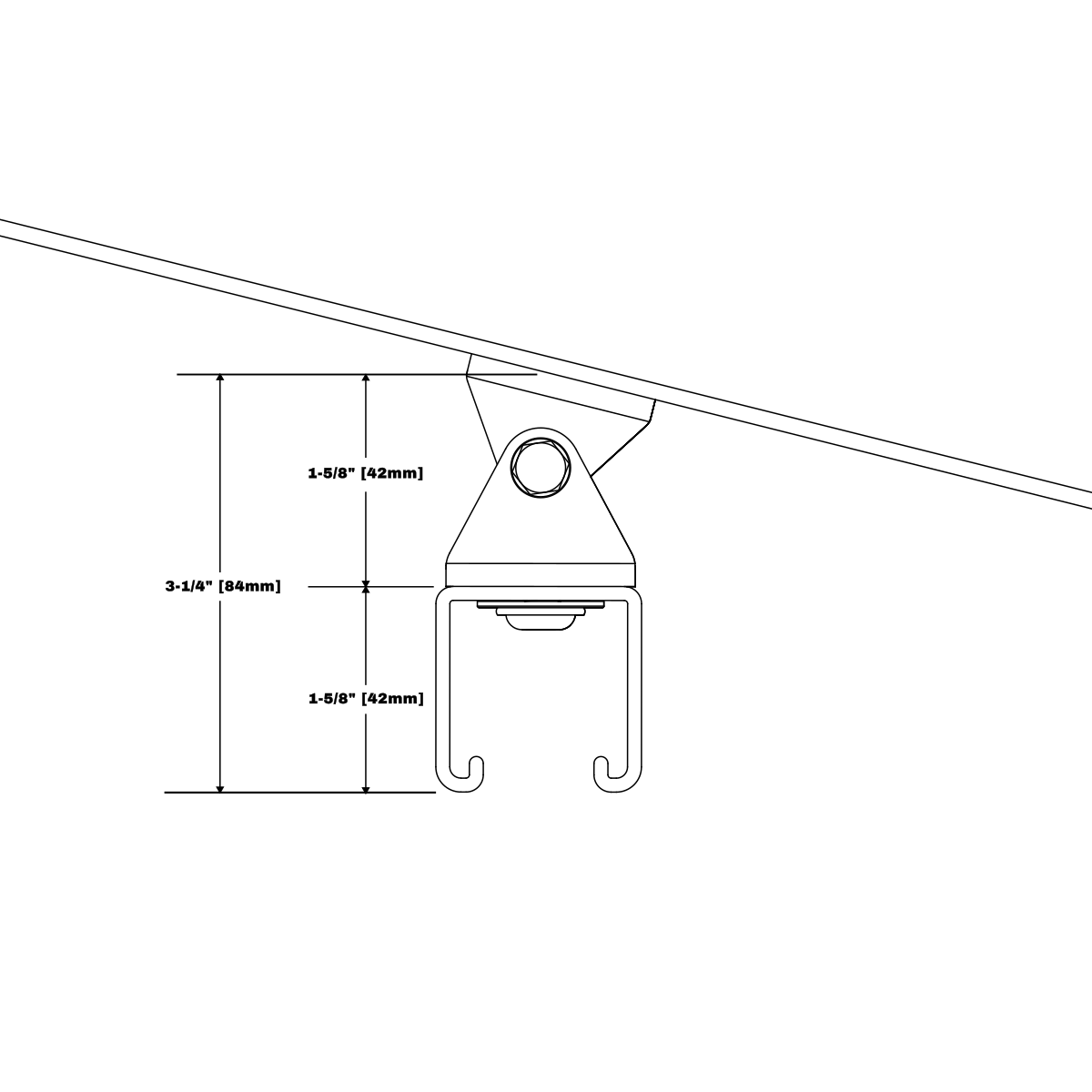

Manufactured from durable zinc-plated steel for corrosion resistance, the hanger accommodates ceiling angles up to 30 degrees, allowing the strut channel to remain properly aligned even when mounted to sloped rafters or ceiling joists.
Each hanger includes an M6 cross bolt with washers and lock nuts for secure attachment to the strut channel. Mounting holes on both sides accept up to 3/8″ (M10) lag screws or bolts, providing flexibility for a variety of wood and structural mounting applications.
Features
- Supports loads up to 100 lbs (45 kg) per hanger*
- Compatible with ceiling slopes up to 30°
- Heavy-duty zinc-plated steel construction
- Includes M6 cross bolt, washers, and lock nuts
- Side mounting holes accept up to 3/8″ (M10) bolts or lag screws

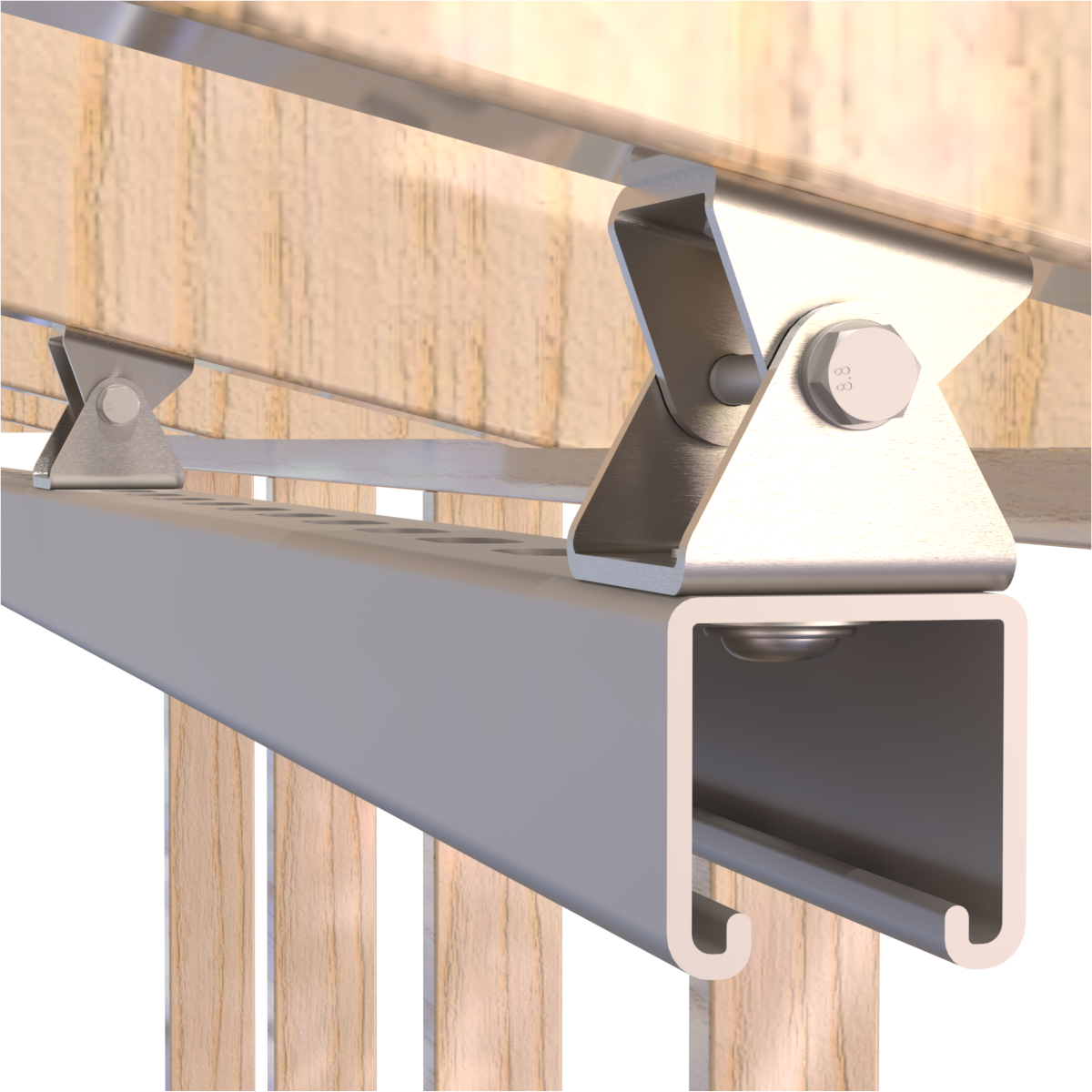

- Ideal for mounting strut channel to angled rafters and ceiling joists
- Corrosion-resistant finish for long service life
Specifications
- Material: Zinc-Plated Steel
- Maximum Load Capacity: 100 lbs (45 kg)*
- Maximum Ceiling Angle: 30°
- Cross Bolt: M6 (included)
- Mounting Hole Size: Up to 3/8″ (M10)
- Hardware Included: M6 bolt, washers, and lock nuts
Related – Not Included
*Load capacity is dependent on proper installation and the strength of the supporting structure.
