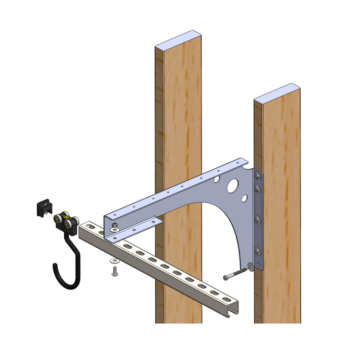

Wall mount bracket expanded view with end stopper, large sliding hook, Unistrut, low profile mounting hardware, mounted on wooden stud with 5/16" lag screws and washers.
Wall mount sliding bike rack with 10ft Unistrut and top shelf mounted to 16" stud wall.
Wall Mount bracket for sliding bike storage rack with shelf.
Wall Mount Sliding Bike rack with top shelf
Close up of left handed wall mount bracket under garage door.
Wall mounted sliding bike storage rack under garage door rail holding five bikes and a helmet.
Wall Mounted Sliding bike rack under garage door rail using a pair of brackets, and a 48inch Unistrut with large and standard sliding hooks, holding five bikes.
Wall mount with shelf and large sliding hooks.
Close up of right hand wall mount bracket mounted to wall with lag screws and washers.
Close up of low profile mounting hardware.
Wall Mount Bracket close up of mounting hardware.
rendering of a pair of wall mount brackets for the Unistrut sliding bike rack.
Wall mount bracket expanded view with end stopper, large sliding hook, Unistrut, low profile mounting hardware, mounted on wooden stud with 5/16" lag screws and washers.
Wall mount sliding bike rack with 10ft Unistrut and top shelf mounted to 16" stud wall.

Wall Mount Bracket For Unistrut Sliding Bike Storage Rack

(1 customer review)

$69.00 – $99.00

Wall mount bracket for Unistrut sliding bike storage rack with top shelf mounting holes and three positions for bikes of various wheel sizes. Sold as pair with low profile mounting hardware for Unistrut. User provides 5/16″ wall mounting screws and washers.

SKU: N/A Categories: ,

Description

This high quality wall mount bracket for Unistrut sliding bike storage rack makes it a simple to store bikes in tight areas and saves space.  Use them in areas such as home garages, bike shops, indoor work areas, and car ports. The user supplies their own 1-5/8″x1-5/8″ Unistrut and wall mounting hardware.  Low profile mounting hardware is supplied for attaching the Unistrut to the bracket. These brackets can be mounted on wood stud walls. A variety sliding hooks sizes can be used to make a compact and versatile sliding bike rack. Mount up to a 24″ deep shelf on top for additional storage. Rod hanging holes allow the optional mounting of 1/2″ conduit or 1″ wooden dowels for hanging items like helmets and back packs. The brackets are sold in pairs or as a left or right hand version.

Features

  • Mounting flange made specifically to secure 1-5/8″ x 1-5/8″ Unistrut
  • Three (3) Strut Channel mounting positions (15-1/8″,17-7/8″,20-9/16″)
  • Top shelf mount with eight pre-cut mounting holes for #10×1/2″ screws. Support a shelf up to 24″ deep
  • Stable mounting flange with 5  wall anchor points
  • High Strength 10 Gauge (0.110in. / 3mm) cold rolled steel
  • Attractive and durable silver hammer tone powder coat
  • Load capacity of 300bs/pair (bikes + gear on top shelf)
  • Low profile hardware included for mounting Unistrut
  • Fit up to 5 bikes using a 48″ long Unistrut with brackets 32″ apart
  • Build longer racks using 10ft sections of Unistrut and two pairs of brackets ( four brackets)
  • Right and Left brackets make for attractive installation in your space
  • Rod hanging (optional). Use 1/2″ conduit to make hanging rod for items like backpacks and helmets.

Included with purchase

  • Bracket (purchase as pair or singles)
  • Low profile screw (M8x1.25×22 Hex Drive, with washers and M8 Lock nut)

User provided items

  • 1-5/8″x1-5/8″ Unistrut 48-120″ long
  • Wall mounting hardware (5/16″x3″ Lag Screw and 5/16″ x 1″ washers recommended)
  • (Optional) top shelf boards and Fasteners
  • (Optional) 1/2″ conduit rod hanger
  • Sliding Hooks
  • End Stops

Wall_Mount_Mailed_Instructions

For More information see:

About The Ultimate Sliding Bike Rack

Gallery

Sliding Hooks and End-Stops

Strut Channel Sources and Common Trade Names USA

Shelving:



Additional information

Weight 12 lbs
Dimensions 24 × 16 × 4 in
Options

pair, right, left
